상세 정보 |
|||
| 자동 급료: | 완전 자동 | 역: | 1-12 |
|---|---|---|---|
| 판형: | 스크린 인쇄 기계 | 애프터 서비스: | 화면 또는 운항 노선 |
| 인쇄된 컬러: | 1 내지 12 | 브랜드: | 센니 또는 OEM |
| 강조하다: | 1000pcs/hr bucket screen printing machine,250x250mm bucket screen printing machine,1000pcs/hr 12 color screen printing machine |
||
제품 설명

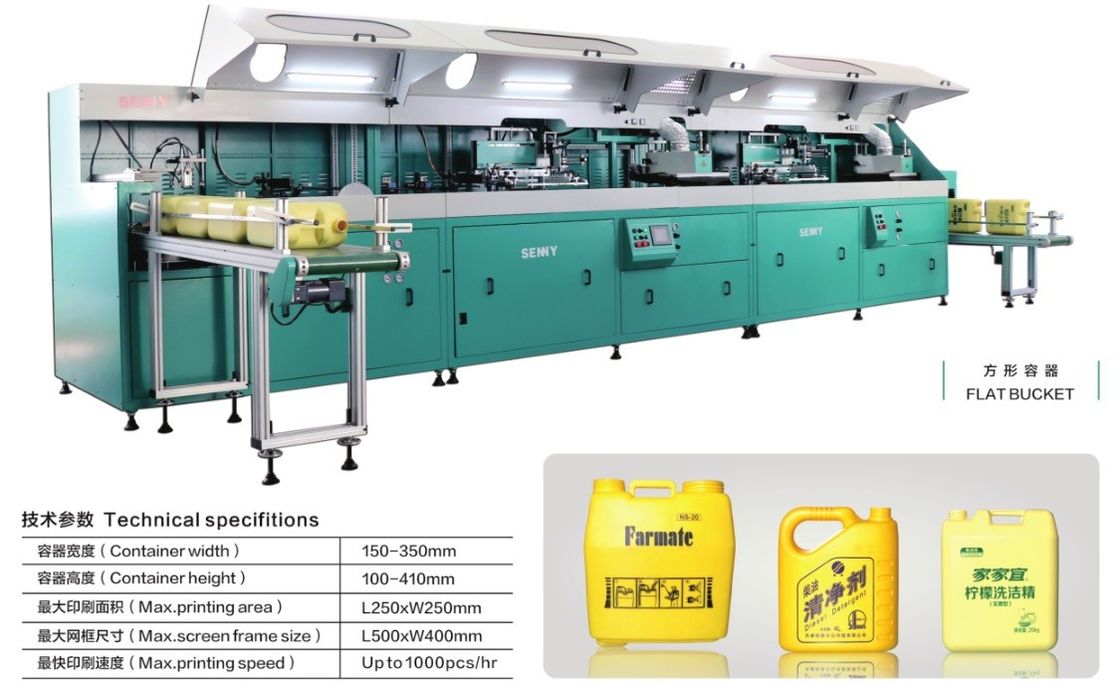

Flat Bucket Screen Printing Machine For Chemical And Cleaning Products 1-12 Colours Auto Screen Printing Line
Application:
This printing system SL700-F is for flat plastic buckets only, the volume can be 5-30L; it is widely used in chemical and food package.
Technical Specifications:
| Model | SL700-F |
| Container width | 150-350mm |
| Container heigth | 100-410mm |
| Max. printing area | L250XW250mm |
| Max. screen frame size | L500XW400mm |
| Max. printing speed | Up to 1000pcs/hr |
Features:
1. The innovative transmission system is very steady in passing the containers, easy to shift between different types of buckets, easy to operate.
2. This machine allows to print up to 12 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
4. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
5. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
6. We can customize machine according to the special products.

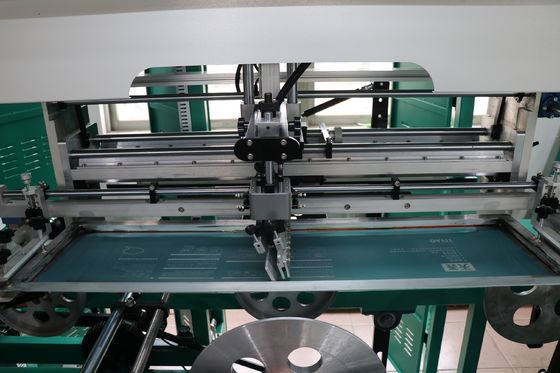

Screen printing device
Blanking device

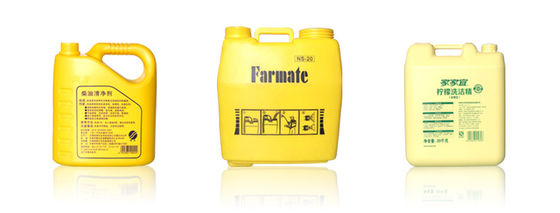

Printing samples
