상세 정보 |
|||
| 자동 등급: | 반자동입니다 | 유지 가능한 소재: | PE, PP |
|---|---|---|---|
| 기재색: | 커스터머이즈드 | 목적: | 세정과 증가 잉크 점착성의 |
| MOQ: | 1PC | 소요기간: | 5-8 일로 일합니다 |
| 강조하다: | 1800pcs/hr flame treatment equipment,220V flame treatment equipment,1800pcs/hr bottle pretreatment machine |
||
제품 설명
PP/PE Materials Used Flame Treating Machine With Electronic Ignition System And High-Quality Fire Spraying System

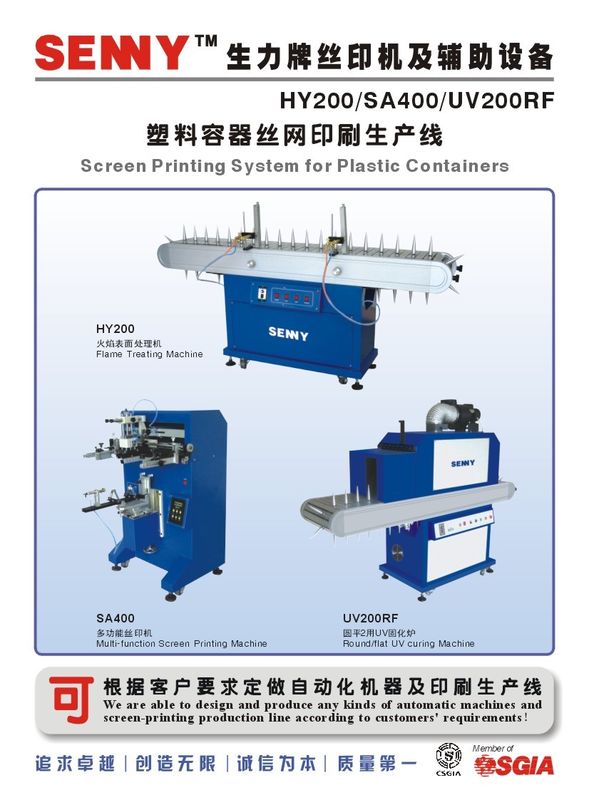

HY200 is equipped as standard with tooling to enable treatment of most kinds of object such as Cylindrical, Conical, Oval and Flat. Cylindrical and Conical bottles are rotating 6 times in front of 2 tracking burners. This, coupled with our triple row burners, ensures a very high degree of treatment, which is especially important to ensure excellent adhesion. This Flame Treater can be used to flame objects to feed simultaneously 2 or 3 semi-automatic printers. Output speed up to 3,000 objects per hour. Change over in a matter of minutes.
Technical characteristics:
1. stable rotating bottle and conveying mechanism.
2. Imported speed regulating motor is used for transmission and equipped with high-quality fire spraying system.
3. Electronic ignition system can be installed according to requirements.
Application:
This machine is specically designed for the bottle pretreatment before printing,the flame can clean the surface of the bottles,so that the ink will be easy to stick to the surface of the plastic bottles. Mainly used for PP and PE materials.
Technical Specifitions:
| Bottle mouth diameter | 10mm to 30mm |
| Max.Treatment speed | Up tp 3000 pcs/hr. |
Technical parameters:
| Power supply voltage | 220 V, 50 Hz power |
| Power consumption | 100W |
| Machine weight | 200kg |
| Curing Size | φ 320 * H300mm |
| Dimensions | L2000 × B500 × H1200mm |
Our machine shipped to many countries oversea, such as Amercia, Korea, Malaysia, India, Pakistan, Germany, Dubai, England, Phillipine, Singapore, Vietnam, Brazil, Uzbeikstan and so on.
The customer from Canada is making quality control personally before shipping out.
Exhibition:
