상세 정보 |
|||
| 용법: | 병, 병, 캡 | 애프터 서비스는 제공되었습니다: | 비디오 기술 지원, 온라인 지원 |
|---|---|---|---|
| 판형: | 스크린 인쇄 기계 | 보증: | 일년 |
| 자동 등급: | 완전 자동 | ||
| 강조하다: | machine,3600pcs/hr 고속도 스크린 인쇄 기계를 출력하는 machine,22kw 원통형 스크린을 출력하는 3600 PC / hr 원통형 스크린 |
||
제품 설명

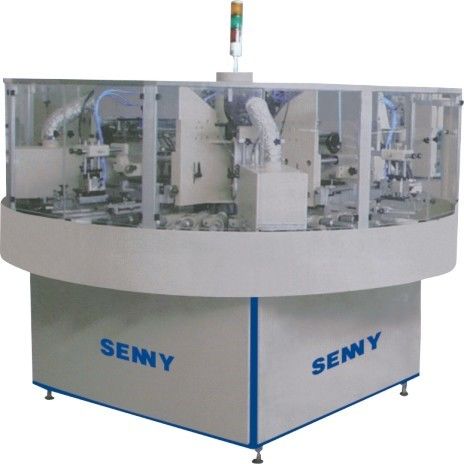

High Speed Automatic Soft Tube Screen Printing Machine With Ultraviolet Curing With Safety Anti-Tempering Device
Applications:
This hot stamping machine is widely used to print on the soft tube, bottle cap, glass glue barrel, cream can, etc.
Features:
1. This machine using advanced precision cam intermittent divider and no positioning point mechanical orientation printing mode, accurate color register.
2. PLC programmable controller and easy-to-use touch screen are adopted to make the machine easy to operate and stable.
3. The machine speed can be adjusted according to the printing needs to meet different printing requirements.
4. Flame surface treatment is equipped with automatic and continuous flame spraying function to meet different printing speed, and is equipped with safety anti-tempering device.
5. The pressure of the scraper is adjustable, and the scraper part has the function of fine-tuning the direction and angle of X, y, Z and z-r.
6. The machine is equipped with a high intensity UV curing system.
Technical Specification:
| Max. printing area | 220×150mm |
| Max. screen frame size | 350×300mm |
| Min. round bottle diameter | φ15mm |
| Max. round bottle diameter | φ70mm |
| Min. bottle height | 20mm |
| Max. bottle height | 230mm |
| Max. printing speed | 3600pcs/hr |
| Power voltage | 380V 50Hz |
| Power consumption | 22KW |
| Air pressure | 5-7 kg/cm2 |
| Machine weight | 2800KG |
| Dimensions | L2300×B2300×H2200mm |
Printing samples
Customer is making field trip to our factory and checking machines before shipping
