상세 정보 |
|||
| 판형: | 레테르를 붙이는 스티커 | 제품 모양: | 스퀘어와 다각형 |
|---|---|---|---|
| 품질보증서: | 일년 | 서비스 후에: | 온라인이거나 비디오 기술 지원 |
| 중량: | 220kg | 힘 전압: | 220V 50Hz |
| 강조하다: | machine,0.6mpa에게 machine,0.6mpa 라벨을 붙이는 1.5KW 자동 스티커 |
||
제품 설명

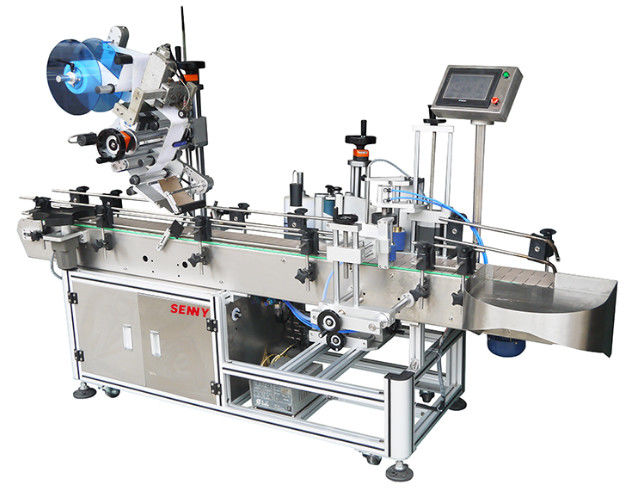

Upper Plane And Circumferential Sticker Automatic Labeling Machine For Round Cans/Bottles
Application:
Applicable label: self adhesive label, self adhesive film, electronic supervision code, bar code (also applicable to two different labels at the same time).
Applicable products: products that need to be attached with labels on the plane and circumference.
Application Industry: widely used in food, daily chemical, wine, medicine, toys, cosmetics, electronics, hardware, plastic and other industries.

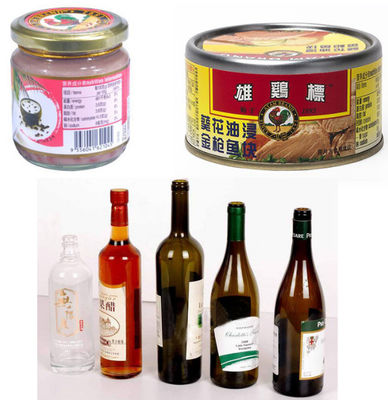

Application examples: food can labeling, mosquito coil box labeling, red wine bottle double labeling, etc
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model | SY300 | Labeling speed | 30～60m/min |
| Sticker length | 20mm～220mm | Conveying speed | 5～18m/min |
| Sticker width | 10～150mm | Weight | 220kg |
| Product diameter | Φ50mm～φ90mm | Power voltage | 220V 50HZ |
| Sticker roll's external diameter | φ280mm | Power | 1.5KW |
| Sticker roll's inner diameter | φ76mm | Air Pressure | 0.4～0.6 Mpa |
| Labeling accuracy | ± 1mm | Conveying orientation | fm left to right |
| Sticker turning out speed | 5～25m/min | Machine dimensions | 2100*1100*1500mm |
Product Features:
1. The adjustment is simple and easy to understand, with front and back, left and right, up and down direction, plane angle, vertical angle adjustment seat, no dead angle for different bottle type switching;
2. Automatic bottle separation, adopting star wheel bottle separation mechanism, effectively eliminating bottle separation obstacles caused by bottle error;
3. Humanized touch screen with complete functions, rich online help functions, preset labeling parameters, switch freely, early warning prompt, labeling quantity management;
4. Intelligent control, automatic photoelectric tracking, no labeling, fault prompt and other functions;
5. High stability, using Panasonic PLC + maintenance touch screen + Panasonic needle shaped electric eye (when there is no production within the set time, the equipment will automatically turn to the power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting is managed by authority), convenient production management.
Contact:
| SENNY PRINTING EQUIPMENT CO., LTD. | |
| Contact Person: | Mary Liu |
| Cellphone/Wechat/Whatsapp: | +86 13539050670 |
| Email: | mary.liu@senny.cc |
Dongguan Senny Produces multi-color auto screen printing machine, auto-screen printing & labelling machine, screen printing & hot stamping machine.
