상세 정보 |
|||
| 최소 주문 수량: | 1pc | 가격: | negotiable |
|---|---|---|---|
| 포장 세부 사항: | 합판 패키지 | 배달 시간: | 한 달 |
| 지불 조건: | t/t | 공급 능력: | 10pcs/월 |
| 패키지 세부 사항: | 합판 패키지 | 인증: | CE SGS |
제품 설명

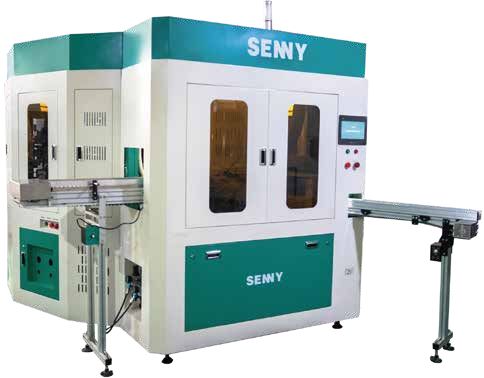

8 Work Station Tube Screen Printing Machine For Soft Tubes Hot-Stamping
PRODUCT
Machine Features
The equipment adopts a servo motor drive system combined with a high-precision digital control system, enabling precise regulation of printing parameters (such as printing speed, pressure, and stroke), ensuring the consistency of each printing action. The machine runs stably without jitter, and the printing repeat positioning accuracy can reach ±0.02mm, meeting the high standards of fine patterns and multi-color overprinting.
The operation mode is flexible and convenient, equipped with a fixed high-definition touch screen that supports on-site intuitive operation and parameter modification. It is also equipped with a mobile wireless tablet control system, which can realize remote monitoring of equipment operation status and adjustment of process parameters. Combined with an exclusive remote service module, engineers can complete fault diagnosis, program upgrades and other maintenance work without being on-site, greatly improving operation and maintenance efficiency.
Core electrical components are selected from internationally renowned brands such as Schneider and Omron. From relays and sensors to PLC modules, they all undergo strict screening to ensure stable performance under long-term high-load operation, effectively reducing equipment failure rates and extending service life.
Technical parameters
| Mechine Model | SRS566 |
| Work Station | 8 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Printing Color | 1+4 |
| Max Printing Length | 30-240mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
flame treatment
UV curing
feeding device
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC tubular UV four-color screen printing machine, specifically optimized for the fine printing needs of cosmetic and skincare hoses. As a four-color screen printer, its core advantage lies in achieving precise four-color overprinting—effortlessly rendering rich color layers and smooth gradients, which is crucial for restoring complex designs on cosmetic hoses such as brand logos with exclusive color schemes, gradient patterns that enhance visual appeal, and detailed ingredient lists with subtle color distinctions.
Its application is highly targeted at this field: it excels in UV screen printing on various cylindrical or slightly tapered cosmetic and skincare hoses—such as those for facial cleansers, serums, lotions, creams, and sunscreens. Whether dealing with hoses made of PE, PP, or composite materials (common in the cosmetic industry), this four-color machine accurately handles curved surface printing of intricate details. Its UV curing system ensures that prints on hoses have strong adhesion, resistance to friction (even with frequent squeezing during use), and a smooth, high-end finish—perfectly meeting the strict aesthetic and durability requirements of cosmetic and skincare products, where vibrant, true-to-design colors are key to brand identity.

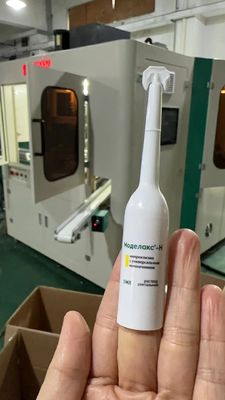

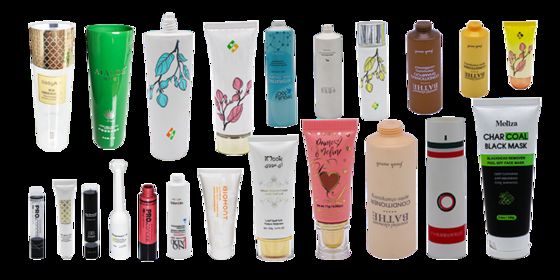

Printing Sample
