상세 정보 |
|||
| 인쇄 속도: | 3200pcs/분 | 인쇄 색상: | 2 색 |
|---|---|---|---|
| 내구성 인쇄: | 높은 내구성 | 상태: | 새로운 |
| 보증: | 1 년 | 애프터 판매 서비스: | 비디오 또는 온라인 |
| 지불 조건: | t/t | 패키지 세부 사항: | 합판 패키지 |
| 인증: | CE SGS | ||
| 강조하다: | 2 color bottle caps printing machine,high speed caps printing machine,24-34mm printing area bottle caps machine |
||
제품 설명

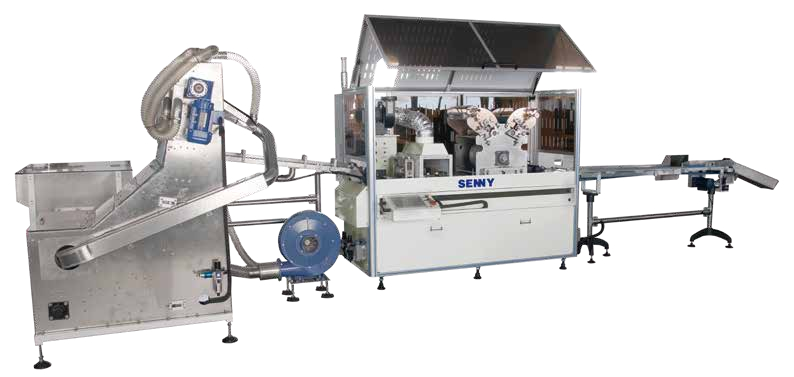

High Speed 2 Color Bottle Caps Printing Machine with 24-34mm Printing Area
Offset printing machine for plastic caps.pdf
Machine Features:
- The machine is suitable for printing UV inks of various colors on the top of plastic bottle caps.Optional 2-4 color variable speed printing system, accurate color registration.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine can be connected with cap making machine, cap slitting machine and quality inspection machine.
- Multiple models to choose from to meet the needs of various users
- The machine adopts well-known brand electrical components with reliable performance.
2-Flame treatment:
A safer plasma treatment option is available
Plasma treatment produces no carbon dioxide or heat emissions.
UV-LED Curing
Energy saving 70
No ozone or hot gas emissions.
Optional Configuration:
- Solving and feeding machines.
- LED-UV curing system.
- Quality Inspection Machines
- Cap slitting machine
- Plasma surface treatment (standard configuration is flame surface treatment).
| Machine Model | SOC2268 |
| Caps Diameter | 28-42mm |
| Printing Area | 24-34mm |
| Printing Speed | Up to 2400pcs/min |
| Printing Colors | 2-4 colors |
| Gas Consumption | 150L/Min |
| Air Consumption | 600L/Min |
| Air | 5-7 Bar |
| Power | 3P 380V 50/60Hz |
Printing sample
Printing device
Applications
SOC2268 Automatic Bottle Cap Two-Color UV Offset Printing Machine is an automatic offset printing machine dedicated to bottle cap printing.Run faster and produce higher efficiency It has a wide application range and can be used for offset printing on various bottle caps (e.g., plastic caps, aluminum caps, tinplate caps) in industries including beverage, wine, condiment, and cosmetics. Equipped with a UV curing system, it can rapidly cure inks, ensuring sharp and abrasion-resistant printed patterns on bottle caps.
Printing sample
