상세 정보 |
|||
| 인쇄 된 색상: | 1-12색 | 속도: | 최대 1000pcs/hr |
|---|---|---|---|
| 내구성 인쇄: | 높은 내구성 | 플레이트 유형: | 스크린 프린팅 머신 |
| 보증: | 1 년 | 자동 등급: | 오토매틱 |
| 지불 조건: | t/t | 인증: | CE |
| 애프터 판매 서비스: | 비디오 또는 온라인 | ||
| 강조하다: | fully automatic screen printing machine for plastic drums,12 color screen printing machine with UV curing,5-30 liter drum screen printing machine |
||
제품 설명

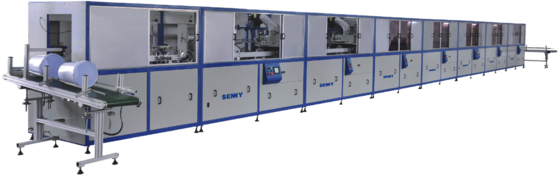

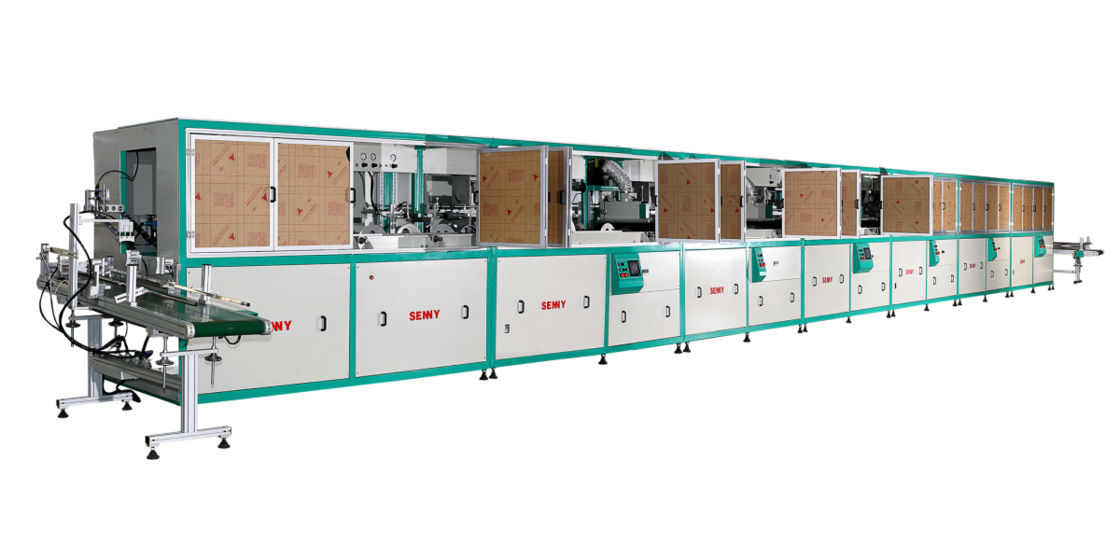

1-12 Color Fully Automatic Screen Printing Machine For 5-30 Liter Plastic Drums UV Curing System
Application:
This screen printing machine delivers one-step single/multi-color printing on plastic drums, built specifically for large, round plastic containers—common in the chemical and food industries.
It stands out with:
A CAM screw-connection structure for better efficiency, precision, and versatility, plus integrated core functions.
An ASP/B carriage with easy-to-use controls (simple adjustments/operation) and full supporting gear: mechanical feeder, flame unit, register system, "no-parts-no-press" safety feature, UV curing system, and unloading device.
Note: The SL700 system only works with 5–30L round (cylindrical) plastic drums, ideal for chemical and food packaging.
Technical Specifications:
| Model | SL700 |
| Printing area | L900XW250mm |
| Screen frame size | L1200XW400mm |
| Cylindrical container diameter | Φ160 - 350mm |
| Container height | 200-400mm |
| Max. printing speed | Up to 1000pcs/hr |
Features:
1. The innovative drive system is very smooth when passing through containers, easy to change between different types of buckets and easy to operate.
2. The machine can print up to 12 colors, each module machine is driven independently and synchronously, accurate color registration between colors, stable and reliable performance.
3. It adopts PLC control and touch screen display, and is equipped with various monitoring systems to ensure high-speed and stable operation of the machine.
4. According to the product characteristics, it can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, no bottle without printing, UV curing system and other functions.
5. All the parts are from Germany, USA and Japan to ensure the quality and printing stability.
6. Machine can be customized according to special products.

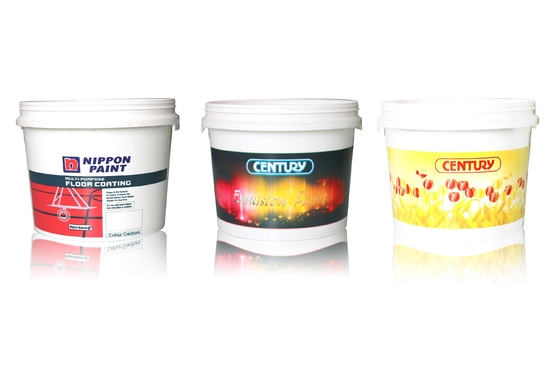

Printing samples
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
