상세 정보 |
|||
| 모델 번호: | SRS499 | 인쇄 된 색상: | 4 색 |
|---|---|---|---|
| 애프터 판매 서비스: | 비디오 또는 온라인 | 플레이트 유형: | 스크린 프린팅 머신 |
제품 설명

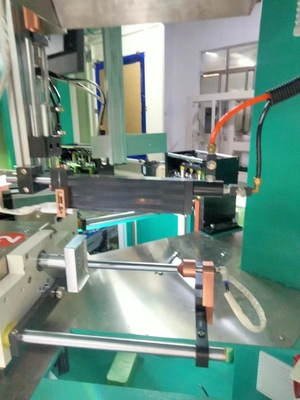

4- Color 70 Pcs/Min Automatic CNC Container UV screen Printing Machine
Machine Model
- This machine is suitable for screen printing UV inks of various colors, hot stamping, and other decorative processes on products of different shapes—such as bottles, jars, and caps—made from materials like plastic, metal, and glass.
- Adopting an integrated turntable design, the machine completes all printing functions with a single set of fixtures. It achieves a high printing accuracy of ±0.1 mm and ensures no scratches on products.
- Driven by a digitally controlled servo motor, the machine enables 360-degree printing on products and is equipped with remote management and service functions (complying with Industry 4.0 standards).
- The machine uses electrical components from well-known brands, a PLC control system, and supports easy operation via a touchscreen and wireless tablet, delivering reliable performance.
Optional Configuration
- Plasma surface treatment (with flame surface treatment as standard) effectively cleans and activates material surfaces: it removes oil, dust, and other contaminants while improving surface adhesion, laying a solid foundation for subsequent printing or bonding processes.
- The hot stamping function enables precise transfer of metallic or colored foils onto product surfaces, producing bright, wear-resistant decorative effects that greatly enhance the items’ aesthetic appeal and premium quality.
- With a built-in visual registration function, the machine uses high-precision cameras and image recognition technology to automatically align printing patterns with product positions—ensuring consistent, accurate registration even for small or complex-shaped workpieces.
- The LED-UV curing system emits high-intensity UV light to cure inks or coatings instantly and efficiently; it has low energy consumption, causes no heat damage to sensitive materials, and helps shorten the overall production cycle.
- The finished product quality inspection function uses visual sensors or detection modules to automatically check key indicators (e.g., print clarity, color consistency, and surface defects like scratches or smudges), reducing manual inspection effort and guaranteeing stable product quality.
Technical Parameter
| Machine Model | SRS499 |
| Max.Printing speed | Up to 70 pcs/min |
| Diameter at 360° | 10-100mm |
| Container at height | 20-320mm |
| Printing color | 4colors |
| Max.Printing area | L300mm*H200mm |
Printing your vision
About us:
Senny caters to sectors like food, medicine, toys, cosmetics, daily chemicals, electronics and decorative products. With automatic printing technologies (screen printing, pad printing, hot stamping, labeling, offset printing, digital printing), it prints high-quality, delicate graphics and texts on products of different shapes and materials (plastic, metal, glass, ceramics).
Founded in 1994, Senny upholds its principle of providing quality products and services. It leverages cutting-edge electrical control components and materials for R&D and production, and refines printing quality across products to satisfy growing demand for premium packaging.
