상세 정보 |
|||
| 스테이션: | 1 | 인쇄 된 색상: | 1 색 |
|---|---|---|---|
| 내구성 인쇄: | 높은 내구성 | 속도: | 최대 5000pcs/시간 |
| 보증: | 1 년 | 자동 등급: | 오토매틱 |
| 패키지 세부 사항: | 합판 패키지 | 지불 조건: | t/t |
| 인증: | CE | 공급 능력: | 5pcs/월 |
제품 설명

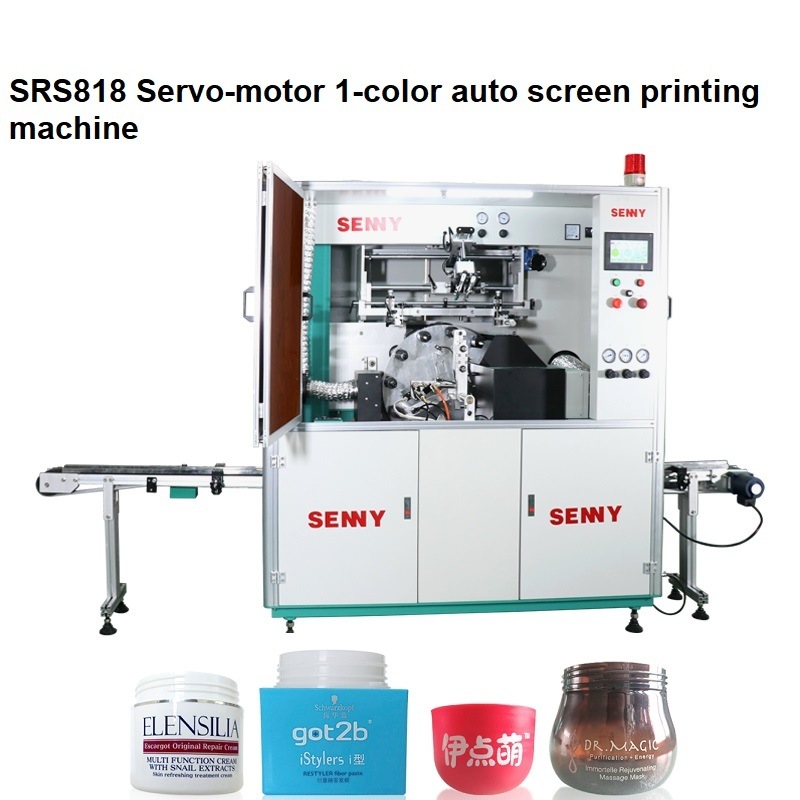

1 Color 5000pcs/Hour Fully Automatic Screen Printing Machine With Servo Motor Control
Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tubes, round cans and round lids with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function. SRS818 saves a lot of manpower for changing different products, shortens the adjustment time, and makes the work easier.
2. SRS818 can make different types of machines according to requirements, such as inline printing or clamp printing.
3. Servo-driven with color-coded pre-register function or servo-driven visual pre-register function is optional.
4. With touch screen for easy man-machine dialog and complete warning system.
5. All adopt servo-driven screen printing machine with highest precision.
6. All fixtures are installed with servo motor rotation (no gears required, easy and fast product change)
Feeding device:
Output device:
Applications:
SRS818 Single-color UV Screen Printing Machine is a specialized UV screen printing machine. Its application scope is targeted and it can be used for UV screen printing of various small-sized cylindrical and irregular workpieces such as small bottles, cans, hoses, lids, etc.

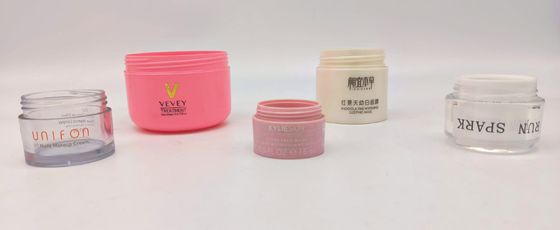

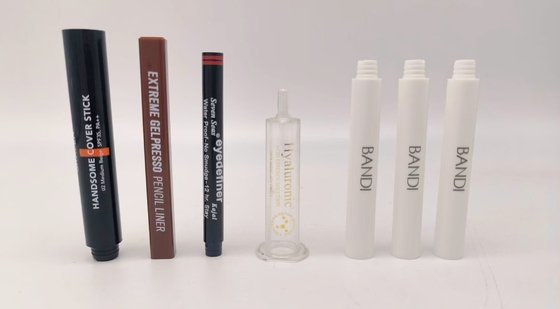

Printing sample
