상세 정보 |
|||
| 자동 등급: | 오토매틱 | 제어 유형: | 서보 운동 제어 |
|---|---|---|---|
| 내구성 인쇄: | 높은 내구성 | 힘: | 380V 50/60Hz |
| 인쇄 속도: | 40개/분 | 인쇄 된 색상: | 4 색 |
| 패키지 세부 사항: | 합판 패키지 | 지불 조건: | t/t |
| 보증: | 1 년 | 인증: | CE |
| 애프터 판매 서비스: | 비디오 또는 온라인 | 공급 능력: | 5pcs/월 |
| 강조하다: | high-speed tube screen printing machine,4-color tube screen printing machine,380v industrial tube printing machine |
||
제품 설명

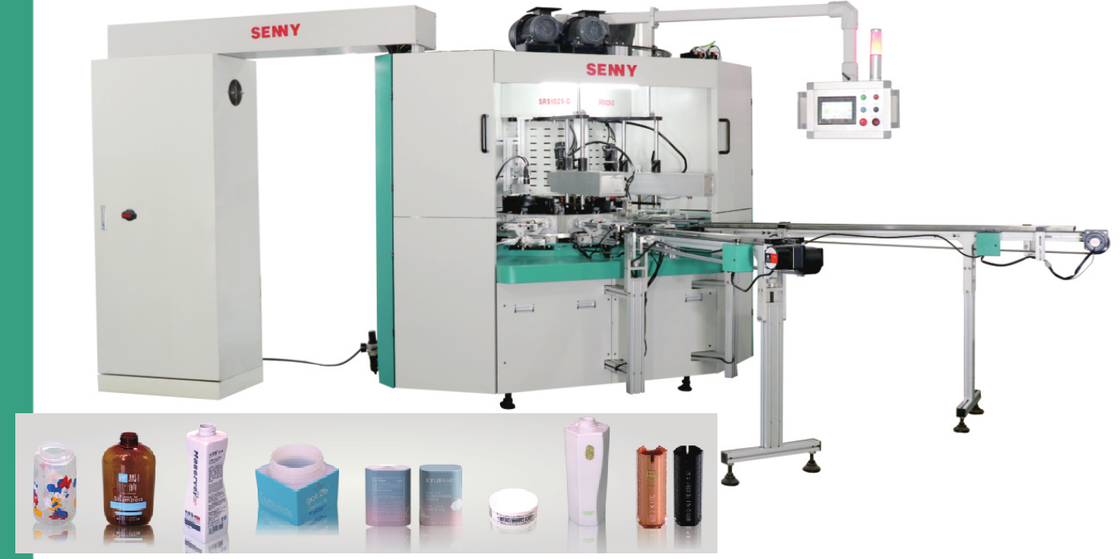

40pcs/Minute , 4 Colours Tube Screen Printing Machine For Small Containers 380v 50/60hz

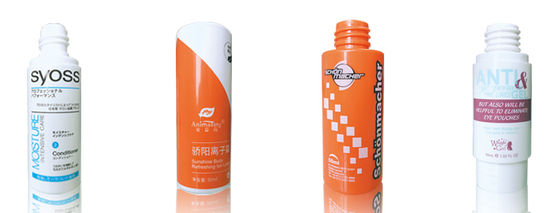

This machine is specially designed for soft tubes.
Wiht servo-motor control,it is easy to operate,and the printing picture is accurate.
Machine Features

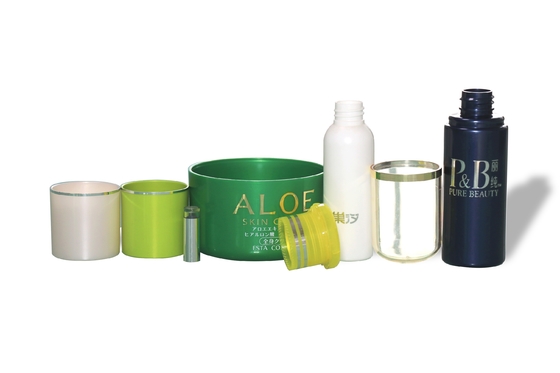

- The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles, jars, caps and other shapes of products, which are made of plastic, metal, glass and other materials.
- The machine is specially developed for small container printing, with compact structure and small footprint.
- The machine adopts an integrated turntable design, all printing functions are completed in the same set of fixture, the printing accuracy is as high as ±0.1mm, and the product won't be scratched.
- The machine is driven by digital control servo motor to realize 360-degree printing of products, equipped with remote management and service functions (Industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system, easy-to-use touch screen and wireless tablet operation, with reliable performance.
Optional Configuration
-Hot stamping function.
-Visual registration function.
-Finished product quality inspection function.
-Plasma surface treatment function.
-LED-UV curing system.
Flame treatment UV curing
Technical specification:
| Printing stations | 4Stations |
| Printing speed | Up to 70 pcs/minute |
| Max.printing area | L250MMXW160MM |
| Tube height | 220mm |
| Air pressure | 6 to 7 Bar |
| Power | 380v 50/60hz |
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
