상세 정보 |
|||
| 플레이트 유형: | 스크린 프린터 | 역: | 5 스테이션 |
|---|---|---|---|
| 인쇄 색상: | 5가지 색 | 제품 모양: | 둥근 |
| 보증: | 1 년 | 서비스 후: | 온라인 또는 비디오 기술 지원 |
| 고정 방법: | 더블 클램프 | 지불 조건: | t/t |
| 패키지 세부 사항: | 합판 패키지 | 인증: | CE |
| 공급 능력: | 5pcs/월 | ||
| 강조하다: | 5 station multicolor screen printing machine,multicolor screen printing machine for round bottles,380V screen printing machine 1200pcs/hr |
||
제품 설명

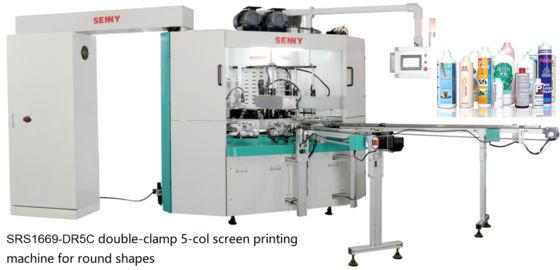

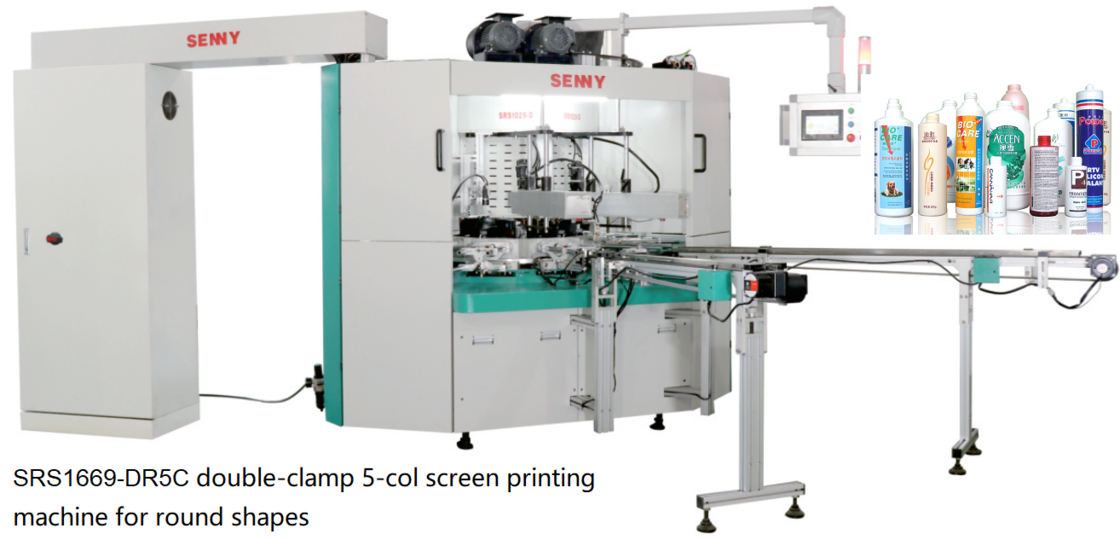

5 Station Multicolor Screen Printing Machine 380V For Round Bottle 1200pcs/Hr
Features:
1. Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
2. With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy
operation and adjustment
operation and adjustment
3. arc-shaped screen printing to avoid pattern distortion
4. Optional: Made based on the customer's special requirements. This includes antistatic dust removing device, flame treatment, radian screen printing,UV/IR system, unloading conveyor.
5. servo motor control screen printing and servo positioning.
6. Main components from Panasonic, Schneider, SMC, OMRON international brand.
7. working with PLC control system.
Flame treating Screen printing device
Technical Specifications
| Model | SRS1249-DR5C |
| Printing stations | 5 (screen printing colors) |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Application:
This machine is a multifunctional rotary multicolor screen printing machine, which can be configured with a hot foil stamping device. It is mainly used for printing patterns and text on round-shaped bottles, jars and caps, and features easy operation, accurate positioning, high automation and fast printing speed.

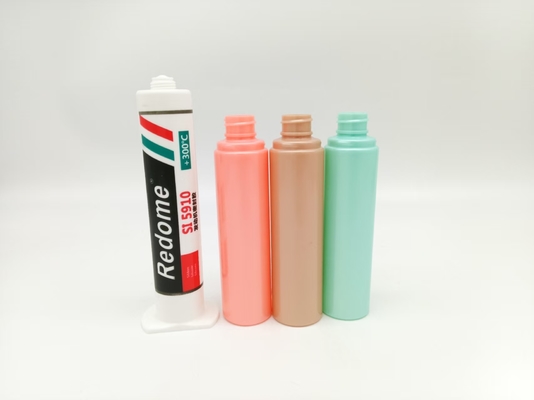

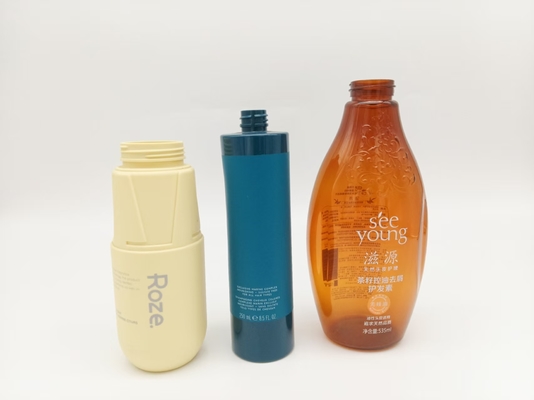

Printing samples
Customer's factory using our machines:
