상세 정보 |
|||
| 스테이션: | 1 | 인쇄 된 색상: | 1 색 |
|---|---|---|---|
| 내구성 인쇄: | 높은 내구성 | 속도: | 최대 5000pcs/시간 |
| 보증: | 1 년 | 자동 등급: | 오토매틱 |
| 패키지 세부 사항: | 합판 패키지 | 지불 조건: | t/t |
| 인증: | CE | 공급 능력: | 5pcs/월 |
| 강조하다: | fully automatic screen printing machine for plastic cans,high speed screen printing machine 5000pcs/hour,screen printing machine with warranty |
||
제품 설명
1 Color Fully Automatic Screen Printing Machine For Plastic Cans And Lids 5000pcs/Hour

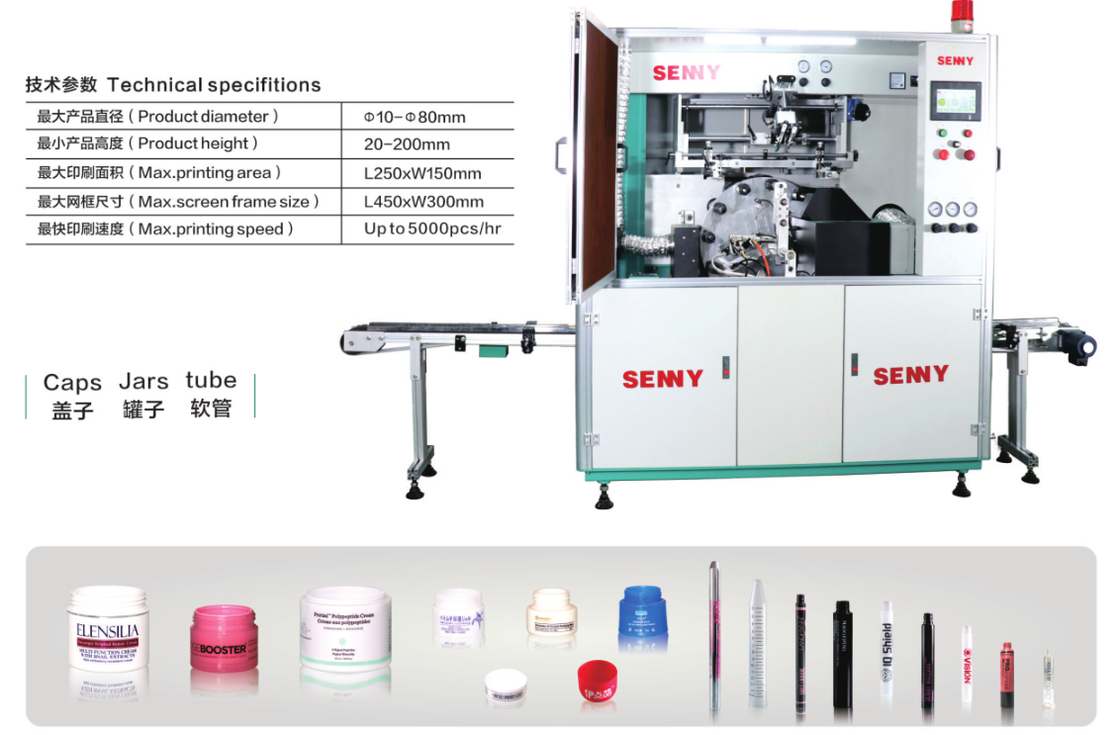

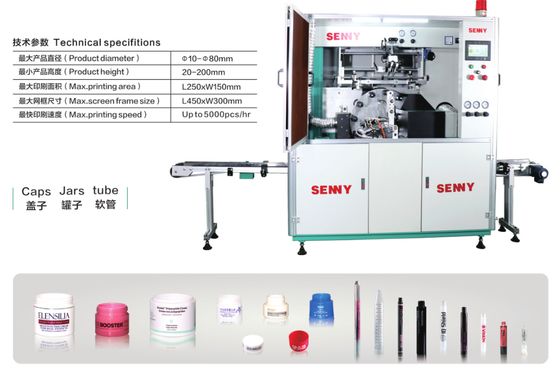

Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tubes, round cans and round lids with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function. SRS818 saves a lot of manpower for changing different products, shortens the adjustment time, and makes the work easier.
2. SRS818 can make different types of machines according to requirements, such as inline printing or clamp printing.
3. Servo-driven with color-coded pre-register function or servo-driven visual pre-register function is optional.
4. Features a touch screen for easy human-machine interaction and a full warning system.
5. Adopts a fully servo-driven screen printing system for maximum precision.
6. All fixtures feature servo motor rotation (gearless design enables easy and fast product changeover)
Feeding device:
Output device:
Applications:
SRS818 Single-color UV Screen Printing Machine is a specialized UV screen printer. Its application scope is specific, suitable for UV screen printing on various small-sized cylindrical and irregular workpieces including small bottles, cans, hoses, lids, etc.

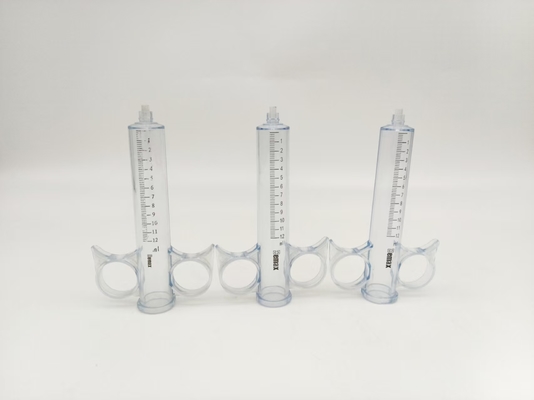

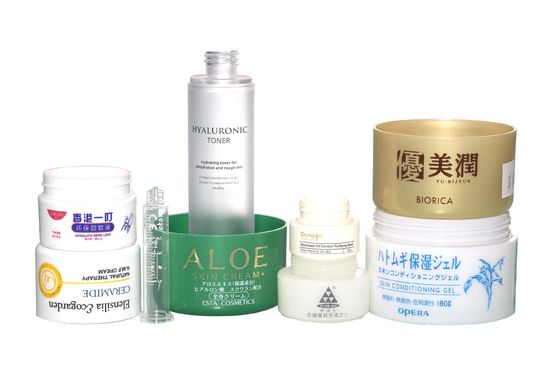

Printing sample
