상세 정보 |
|||
| 모델 번호: | SRS826 | 인쇄 색상: | 2 색 |
|---|---|---|---|
| 플레이트 유형: | 스크린 프린팅 머신 | 보증: | 1 년 |
| A/S (애프터 서비스): | 비디오 또는 온라인 | 포장 세부 사항: | 합판 패키지 |
제품 설명

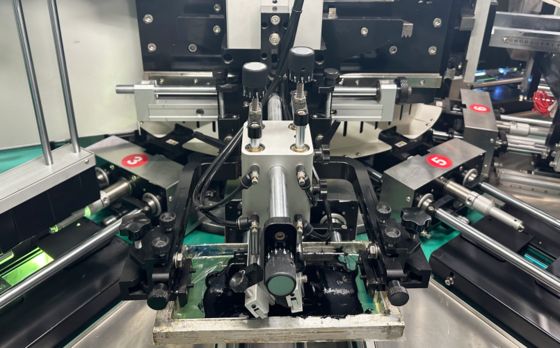

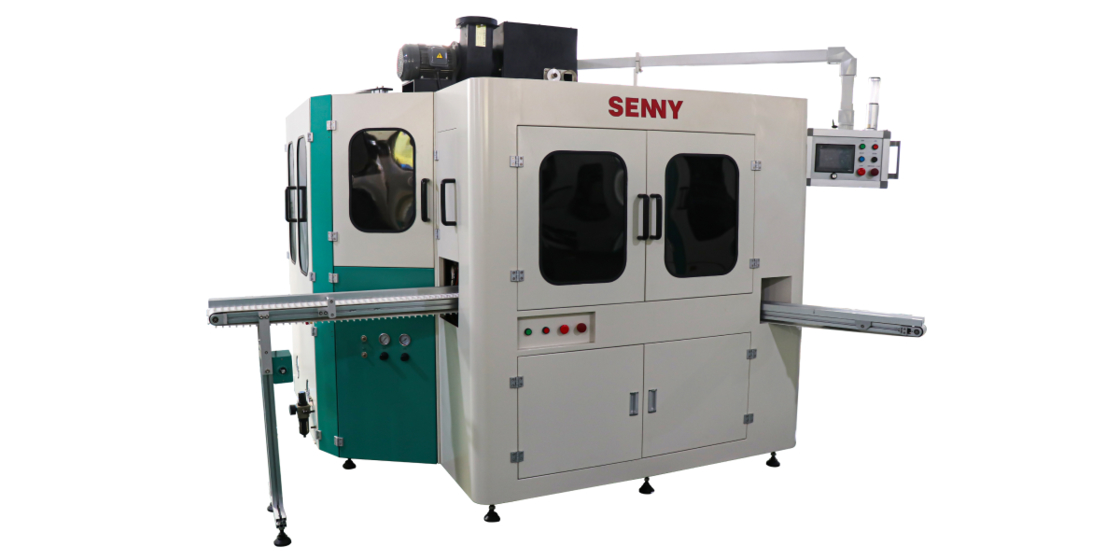

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of UV ink,hot stamping,varnishing and other decorations on plastic soft tubes.
- The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm.
- The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and service functions(industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system,easy-to-use touch screen and wireless tablet operation,with reliable performance.
Optional Configuration

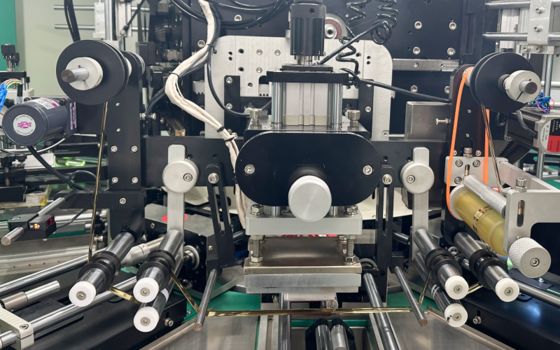

- Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
- Visual registration function. LED-UV Curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS826 |
| Work Station | 8 |
| Printing Speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Printing Sample
About us:
In 2020, Shenli provided Russian customers with a CNC 1-color glazing + 3-color screen printing UV curing production line for hoses. Since then, Shenli has been capable of offering customers the production capacity of various CNC multi-color screen printing, gold stamping and quality inspection machines for hoses.
