상세 정보 |
|||
| 모델 번호: | SR816 | 인쇄 색상: | 1 색 |
|---|---|---|---|
| A/S (애프터 서비스): | 비디오 또는 온라인 | 포장 세부 사항: | 합판 패키지 |
| 상표: | Senny | 작업장: | 8개 스테이션 |
제품 설명
Soft Tube CNC 1-color Automatic UV Printing Machine 60 Pcs/Min
Machine Feature
- SR816 is suitable for screen printing of various colors of UV ink, hot stamping, varnishing and other decorations on plastic soft tubes, catering to the diverse decorative needs of products in fields such as daily chemicals and healthcare.
- SR816-H is suitable for hot stamping gold or silver foil on plastic soft tubes.
- The machine adopts an integrated turntable design with complete functions,the servo drives the front and rear registration and printing.
- The machine adopts well-known brand brand electrical components,PLC control system and easy-to-use touch screen,with reliable performance.
Optional Configuration
- Unscrambling & feeding machine.
- Hot stamping function.
- Plasma surface treatment function.
- Visual registration function.
- LED-UV Curing function.
Technical Parameters
| Machine Model | SR816 | SR816-H |
| Work Station | 8 | 8 |
| Printing color | 1 | 1 |
| Soft Tube Diameter | 16-75mm | 16-75mm |
| Soft Tube Height | 60-220mm | 60-220mm |
| Max.Printing Length | 250mm | 250mm |
| Max.Printing Height | 180mm | 180mm |
| Printing Speed | Up to 50 pcs/min | Up to 50 pcs/min |

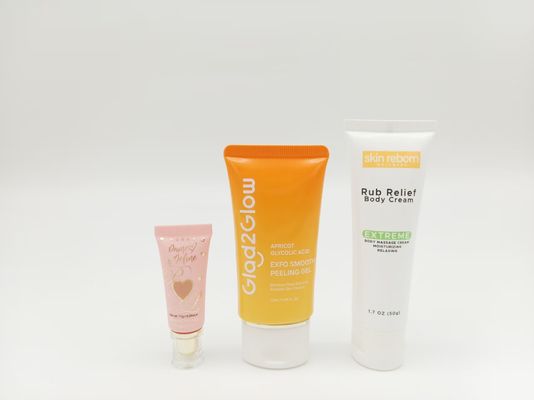

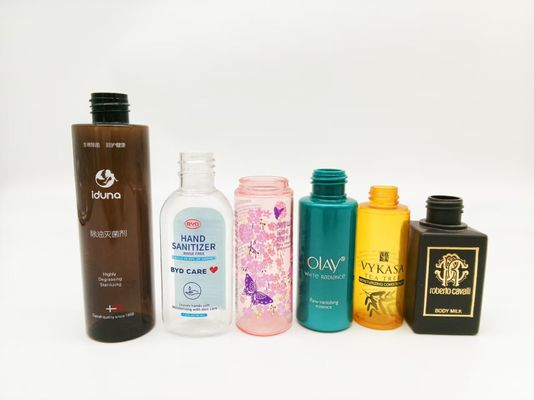

Printing Sample
About us:
In 2020, Senny supplied Russian clients with a CNC hose production line, which includes 1-color glazing, 3-color screen printing and UV curing functions. Since then, Shenli has been able to offer customers a range of CNC equipment for hoses, covering multi-color screen printing, gold stamping and quality inspection.
