Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
제품 상세 정보:
| 원래 장소: | Dongguan China |
| 브랜드 이름: | SENNY |
| 인증: | CE SGS |
| 모델 번호: | SLS1588-IR5123 |
| 문서: | Plastic Bottle printing mac...ne.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 합판 패키지 |
| 배달 시간: | 45 일 |
| 지불 조건: | t/t |
| 공급 능력: | 10 PCS/월 |
|
상세 정보 |
|||
| 기계 모델: | SLS1588-IR5123 | 인쇄 색상: | 1-8 색 |
|---|---|---|---|
| 잉크 유형: | IR 잉크 | A/S (애프터 서비스): | 비디오 또는 온라인 |
| 모터: | 서보 모터 | 포장 세부 사항: | 합판 패키지 |
제품 설명

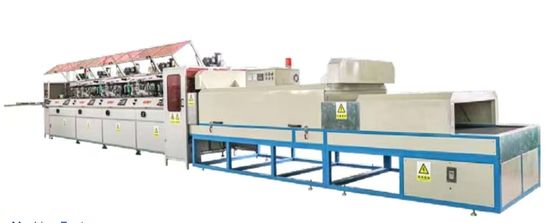

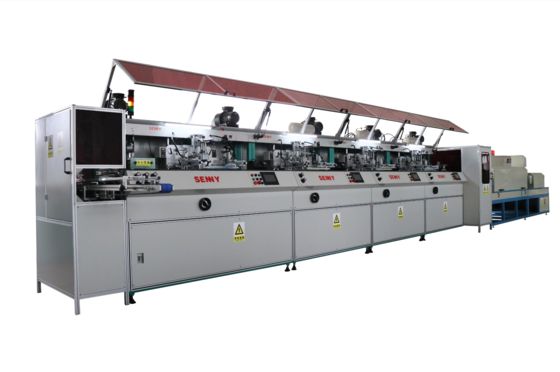

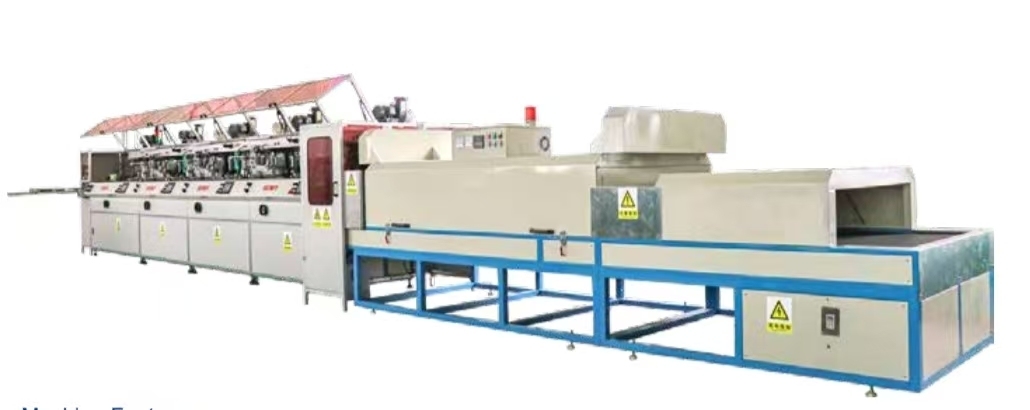

Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of IR ink on round, oval, square and other shapes of plastic bottles.
- The machine uses digital control servo motor to drive the printing function, easily realizes 360-degree printing. And it is
equipped with remote management and service functions(Industry 4.0).
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine adopts a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and IR curing module, and you can choose to connect independent hot stamping, labeling, quality inspection and other modules to form a multi-functional printing machine.
- After the product printing is completed, it is discharged by the manipulator and arranged in a row into the constant temperature drying tunnel furnace to completely cure the ink.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SLS1588-IR5123 | SLS1888-IR5123 |
| Max.Printing Length | 250mm | 250mm |
| Max.Printing Height | 200mm | 200mm |
| Bottle Height | 50-280mm | 50-280mm |
| Diameter at 360 degree | 20-140mm | 20-140mm |
| Printing Speed | Up to 50 pcs/min | Up to 50 pcs/min |

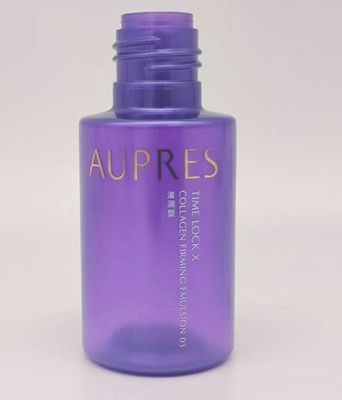

Printing Sample
About us:
Senny caters to the food, pharmaceutical, toy, cosmetics, daily chemical, electronics, and decorative product industries—plus more. Leveraging automatic printing technologies (including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing), it delivers high-quality, detailed graphics and text on products of different shapes, such as plastic, metal, glass, and ceramics.
Since 1994, Senny has stuck to its business philosophy: delivering quality products and services to customers. It uses top-tier electrical control parts and materials for R&D and production, while constantly enhancing printing quality on diverse products to meet the growing market demands for high-quality packaging.
