제품 설명

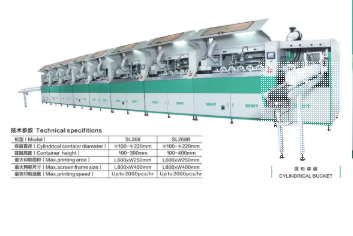

Multicolor Screen Printing Machine For Cylindrical Bucket With Max Container Diameter 220mm And Height 400mm
Technical Specifications:
We designed 2 different machines SL268 and SL268B according to cylindrical container's height:
| Model | SL268 | SL268B |
| Cylindrical container diameter | Φ100 - Φ220mm | Φ100 - Φ220mm |
| Container height | 100 - 300mm | 100 - 400mm |
| Max. printing area | L600 X W250mm | L600 X W250mm |
| Max. screen frame size | L800 X W400mm | L800 X W400mm |
| Max. printing speed | Up to 2000pcs/hr |
Up to 2000pcs/hr |
Application:
This machine is designed for cylindrical container, the material can be glass, plastic or metal; it is widely used in chemical and food package.
Features:
1. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.
2. This machine allows to print up to 12 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
4. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
5. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
6. We can customize machine according to the special products.

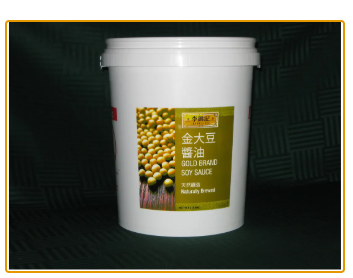

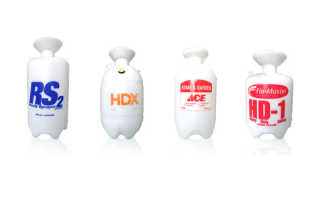

Printing samples
