상세 정보 |
|||
| 자동차 등급: | 완전 자동 | 플레이트 유형: | 스크린 프린터 |
|---|---|---|---|
| 인쇄 된 색상: | 1~8 | 내구성 인쇄: | 높은 내구성 |
| 보증: | 1 년 | 애프터 판매 서비스: | 비디오 또는 온라인 |
| 인증: | CE SGS | 패키지 세부 사항: | 합판 패키지 |
| 지불 조건: | t/t | 배달 시간: | 45 일 |
| 강조하다: | 8 color bottle screen printer,cylindrical container screen printer,high-speed bottle screen printer 85pcs/min |
||
제품 설명

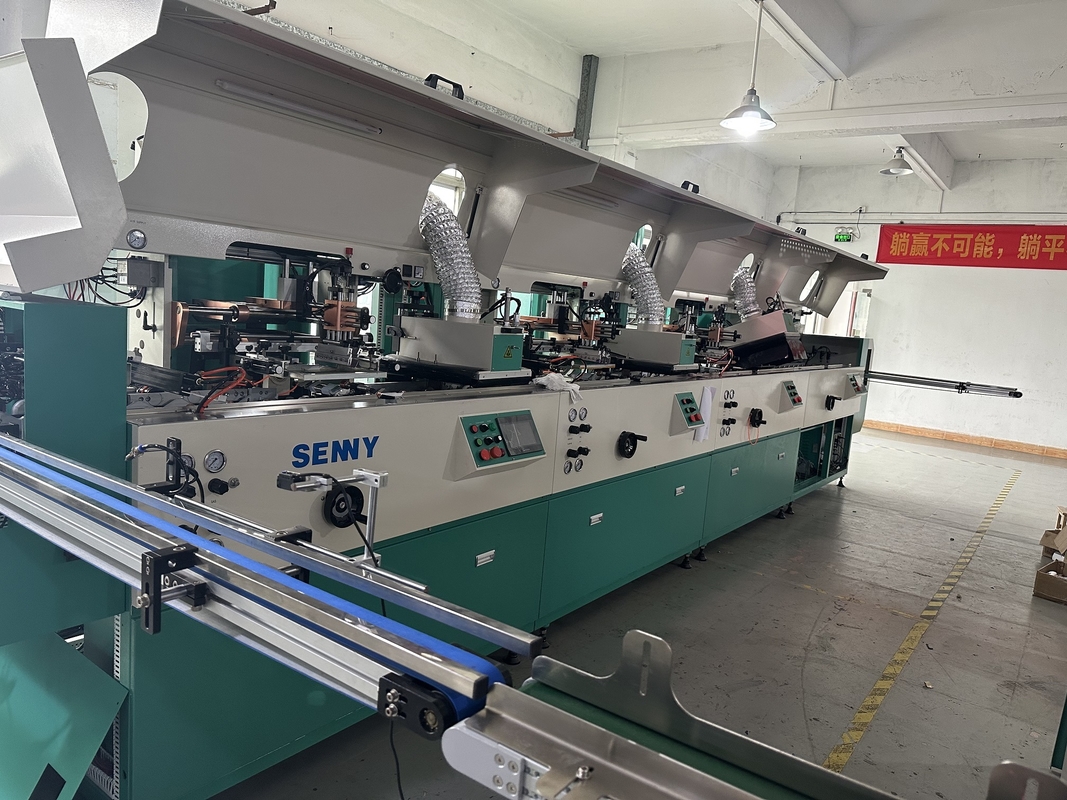

1-8 Color Bottle Screen Printer For Cylindrical Containers 85pcs/Min
Machine Features:
SL1288 is an automatic printing equipment specially designed for cylindrical plastic bottles, capable of printing UV inks of various colors on the bottle surface. Developed for the printing of round bottles, this model is 50% faster to set up than traditional ones and easy to operate, allowing operators to get started quickly.
Up to now, the number of this series of container screen printing machines put into use worldwide has exceeded 1,000 units, with users spread across Asia, Europe, the Americas, Oceania and other regions, covering numerous industries such as food packaging, daily chemical products, pharmaceutical packaging, and gift customization.
Multiple models to choose from to meet the needs of various users.In response to the production scenarios and process requirements of different users, the equipment offers a wide range of model options. From special models for small circular containers (such as beverage bottles, cosmetic sample bottles) to customized models for large square and special-shaped containers (such as laundry detergent buckets, pharmaceutical reagent buckets);
The machine adopts well-known brand electrical components with reliable perfor- mance.These components have not only passed strict international quality certifications, with advantages such as strong anti-interference ability, fast response speed, and long service life, but also can maintain stable performance in complex production environments such as high temperature and high humidity, effectively reducing the incidence of equipment failures.
Technical Specifications
| Machine Model | SL1288 |
| Max. speed | 85pcs/min |
| Round bottle diameter | 20-80mm |
| Oval bottle radius | 25-250mm |
| Oval bottle width | 20-100mm |
| Bottle height | 50-260mm |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Applications
SL1288 Automatic Plastic Bottle 1-8 Color Screen Printing Machine with UV Curing is an automatic cylindrical screen printing machine designed for plastic bottles. It has a wide application range and can be used for screen printing on various plastic bottles (e.g., PET bottles, PE bottles, PP bottles) in industries including beverage, cosmetics, daily chemicals, and food. Equipped with a UV curing system, it enables rapid ink drying, ensuring strong ink adhesion and vivid patterns.
Printing sample

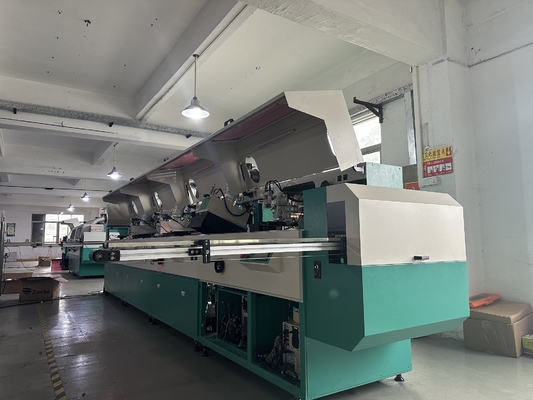

Customer Factory using our machine
Exihibition Show
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
