상세 정보 |
|||
| 인쇄 색상: | 1 색 | 속도: | 최대 70pcs/분 |
|---|---|---|---|
| 기계 색상: | 그림으로 또는 주문을 받아서 만드는 | 보증: | 1년 및 평생 기술 지원 |
| 플레이트 유형: | 스크린 프린터 | 애프터 판매 서비스: | 온라인 또는 비디오 기술 지원 |
| 패키지 세부 사항: | 합판 패키지 | 지불 조건: | t/t |
| 인증: | CE | 보증: | 1 년 |
| 공급 능력: | 5pcs/월 | ||
| 강조하다: | auto rotary screen printing machine,flat screen printer with flame treatment,1-col screen printing machine |
||
제품 설명

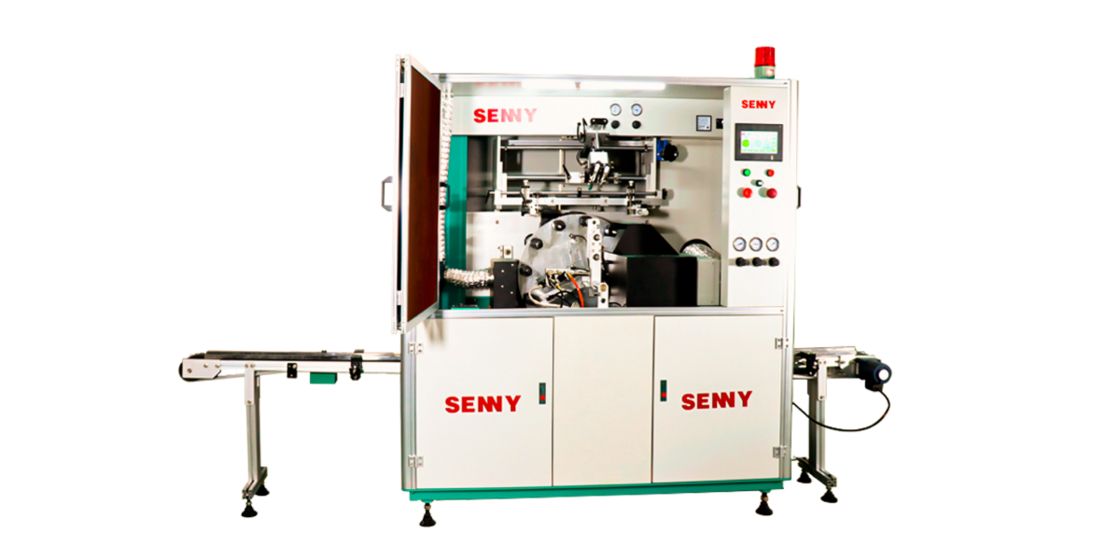

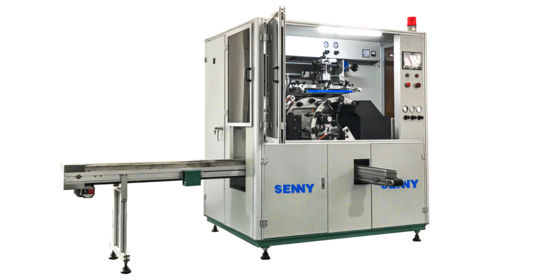

1-Col Auto Rotary Type Flat Screen Printing Machine With Flame Treatment Function
Technical specification:
| Model | SR818 | SR818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr |
Up to 5000pcs/hr |
Product Applications and Features:

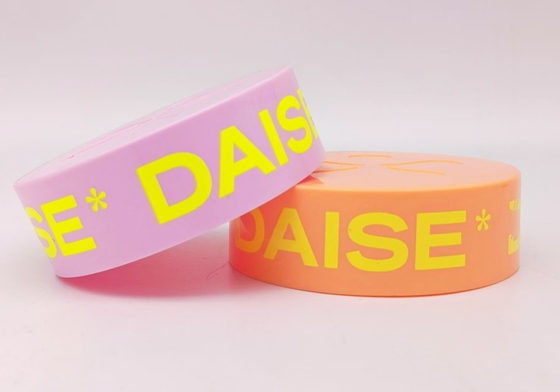

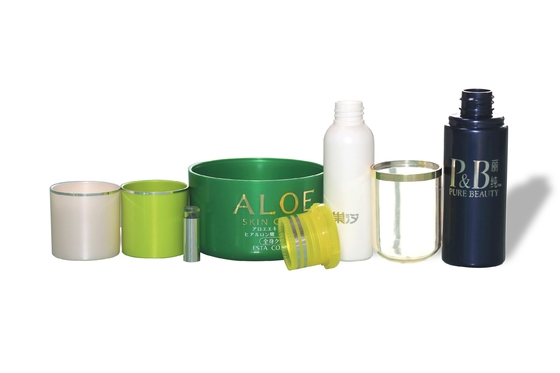

1. Automatic screen printing machine for plastic soft tubes, round cans and round caps. Equipped with auto feeding, electrostatic dust removal, flame treatment, servo-drive registration, auto printing and UV curing functions—streamlines the entire printing process.
2. Customizable machine types available as needed, such as inner mode printing or clamp type printing, to fit different processing demands.
3. Optional servo-drive configurations: either color mark pre-registration or servo-drive visual pre-registration, for flexible precision control.
4. Comes with a touch panel for easy man-machine interaction, plus a complete warning system to prompt abnormalities in time.
Flame treatment device
About us:
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
