상세 정보 |
|||
| 기계 모델: | SL1688 | 인쇄 색상: | 1-8 색 |
|---|---|---|---|
| 플레이트 종류: | 선형 스크린 프린터 | 보증: | 1 년 |
| A/S (애프터 서비스): | 비디오 또는 온라인 | 포장 세부 사항: | 합판 패키지 |
제품 설명

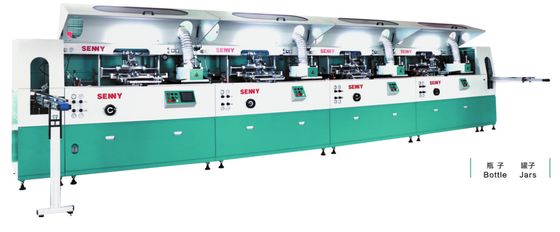

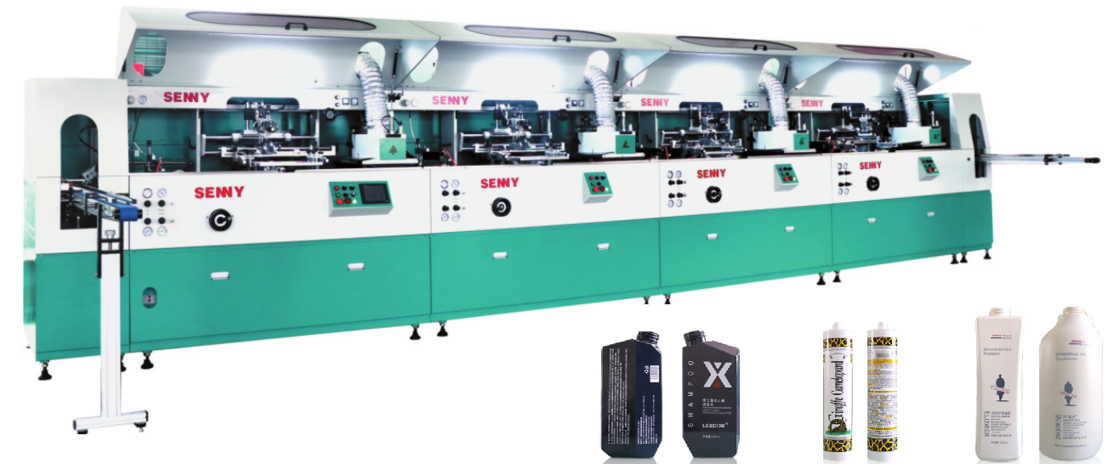

1-8 Colors Plastic Bottle Automatic Linear UV Printing Machine 85 Pcs/Min
Machine Feature
- This machine is suitable for screen printing with UV inks in multiple colors, as well as hot stamping, labeling, and other decorative processes on plastic bottles of various shapes—including round, oval, and square.
- The machine features an excellent transmission design, ensuring stable operation, fast changeover, and easy use. It also complies with CE certification.
- The machine utilizes electrical components from well-known brands, paired with a user-friendly touch screen and PLC control system, delivering reliable performance.
- The machine adopts a highly customizable modular structure, allowing linear connection to form a 1 to 8-color printing machine.
- The machine’s standard configuration includes a screen printing and UV curing module, with the screen printing function optionally interchangeable with hot stamping or labeling functions.
- The machine can be connected to independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing system.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SL1688 |
| Max.Printing Length | 300mm |
| Max.Printing Height | 250mm |
| Round Bottle Diameter | 20-100mm |
| Oval Bottle Radius | 25-250mm |
| Oval/Flat Bottle Width | 20-130mm |
| Bottle Height | 50-300mm |
| Printing Speed | Up to 85 pcs/min |

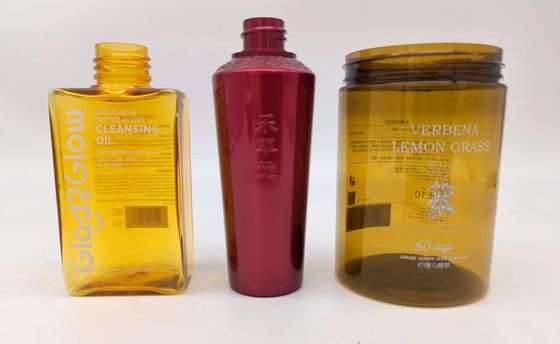

Printing Sample:
About us:
In 2024, Senny successfully launched a bottle three color silk screen printing, automatic feeding, and visual quality inspection production line for Brazilian customers. The linear machine is equipped with high-speed line scanning and area array cameras, suitable for round/oval/flat bottles, greatly saving the cost of manual inspection. The customers are very satisfied with the machine.
In 2025, Senny successfully launched a CNC 6-color screen printing and hot stamping machine for glass wine bottles and baby bottles for Taiwan customers. It can use both UV ink and thermosetting ink, and the visual color matching is very accurate. The screen printing and hot stamping patterns are exquisite and unparalleled. In the same year, San Miguel launched a CNC plastic milk bottle 6-color IR ink silk screen printing machine+curing oven for Türkiye's milk bottle customers. The machine is equipped with the laser coding function at the bottom of the bottle, which can automatically generate the date and batch number.
